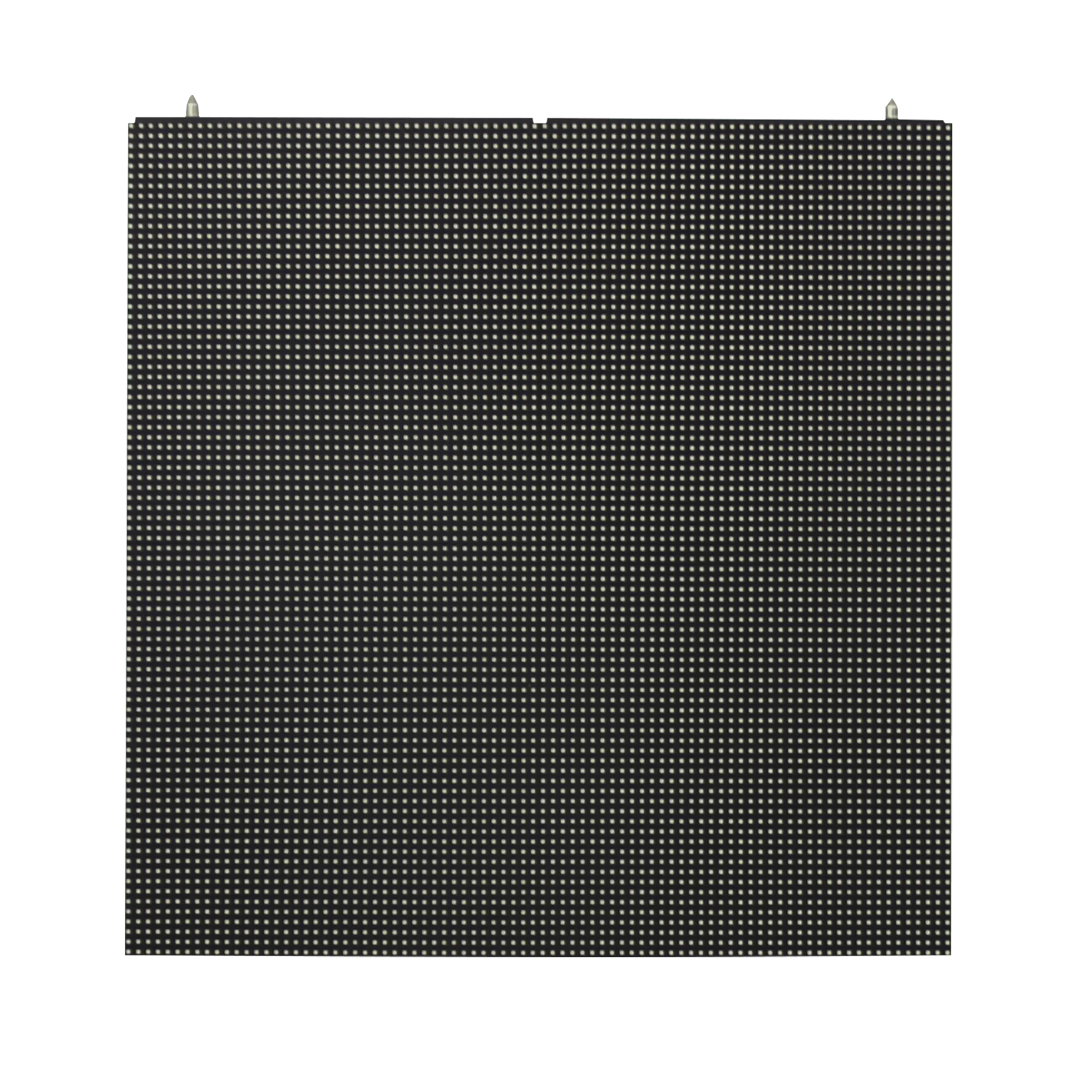

Verhuur: DMT Premiere series PS4.6N 50x50cm

The DMT Pixelscreen PS4.6N is a high performance rental panel for in and outdoor applications. Due to the 4.6 mm pixel pitch the recommended viewing distance to the screen is approximately 4m. therefore very well suited for medium stages and events.

The 50x50cm cabinets are slim and lightweight (8,5 kg), the cabinets enable you to set up and dismantle video screens easily.

Specifications

Optical

Pixel Pitch (Horizontal)

4.63 mm (0.182″)

Pixel Pitch (Vertical)

4.63 mm (0.182″)

Cabinet Resolution (Horizontal)

108 px

Cabinet Resolution (Vertical)

108 px

Module Resolution (Horizontal)

54 px

Module Resolution (Vertical)

108 px

Viewing Angle (Horizontal)

160 °

Viewing Angle (Vertical)

140 °

Minimum Viewing Distance

4 m (13.123 ft)

Cabinet Ratio

1:1

Source

Light Source Type

LED

LED Type

Black Frame

Light Source Brand

Nationstar Gold Wire

Brightness

5000 nits

Control and Programming

Control System

Novastar

Receiving Card

A5s

Screen Refresh Rate

1920 Hz

Electrical Specifications and Connections

Power Supply

100-240 V AC 50/60 Hz

Power Consumption

300 W

Power Consumption Average

100 W

Power Connector In

powerCON TRUE1

Power Connector Out

powerCON TRUE1

Data Connector In

etherCON

Data Connector Out

etherCON

Mechanical Specifications

Cabinet Width

500 mm (19.685″)

Cabinet Height

500 mm (19.685″)

Cabinet Depth

65 mm (2.559″)

Module Width

250 mm (9.843″)

Module Height

500 mm (19.685″)

Weight

8.5 kg (18.739 lb)

IP Rating

IP54 Rear, IP65 Front

Housing

Magnesium die-cast

Product Properties

Cooling

Convection

Maintenance

Rear service

Rigging

Fixed Mounting Option

M10

Rigging Horizontal Max.

16 pcs

Rigging Vertical Max.

15 pcs

Locking System

Fast Lock System

Thermal Specifications

Maximum Ambient Temperature

45 °C (113 °F)

Minimum Ambient Temperature

-10 °C (14 °F)
